Multi Cable Transit

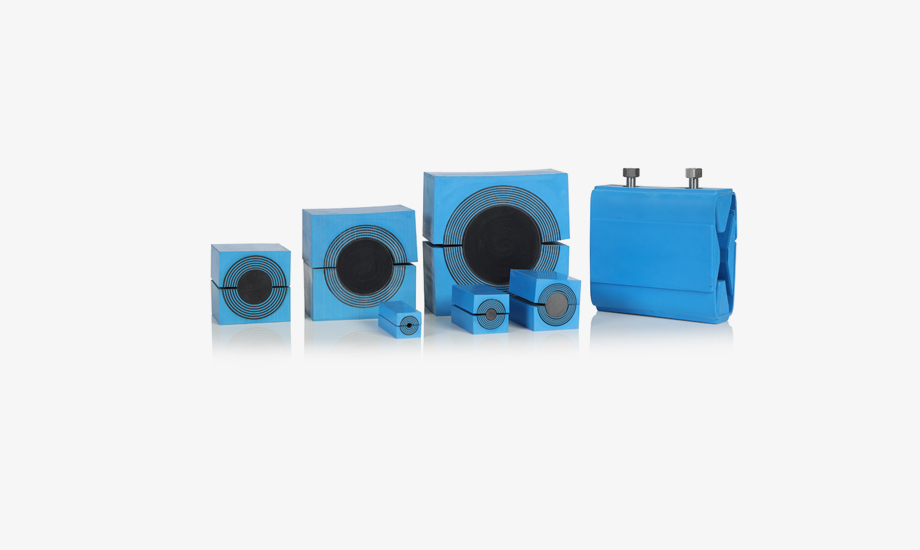

Cable Transit Device (MCT) is a kind of the cable penetration sealing form,mainly used to meet the requirements of airtight, fire prevention, waterproof ,etc. At the same time MCT can ensure the integrity of penetrated objects.MCT consisting of the transit frame, cable transit module, compression kit and anchor plate. The cable transit module is composed of the fire-resistant, gas- and watertight basic module,adapter module and solid module.
Product advantages:
• Fire resistant;
• Oppose violence;
• Gastight and watertight thanks to 7 sealing lips;
• Only 7 different modules are needed to cover all cable diameters from 3 to 99 mm;
• Filler modules for future cable installations;
• Big saving thanks to modules interlinking, especially where cables run vertically through deck penetrations;
• Wedge seals with double bolts for quick installation;
• Special EMC module can be used to Anti-EML.

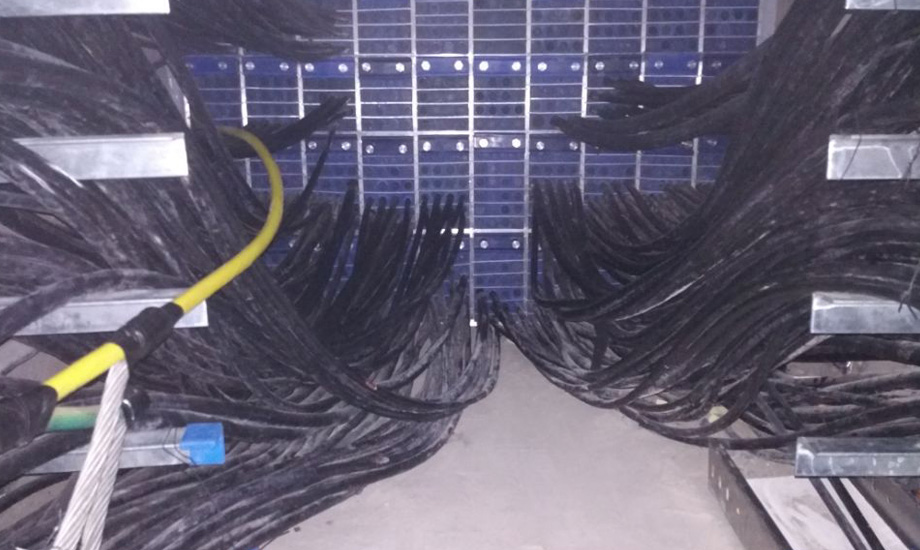

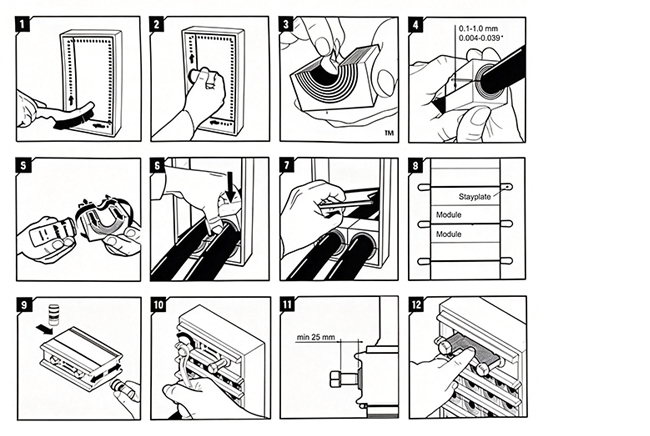

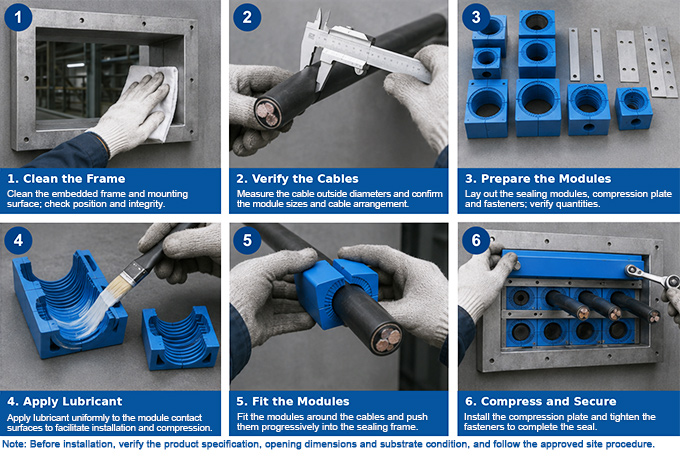

Installation Instructions:
• Clean the frame;
• Lubricate the inside surfaces of the frame all around with Roxtec Lubricant. especially into the comers;
• Adapt modules by peeling off layers until you reach the gap seen in pic.4.The number of layers may not differ by more than one between the halves;
• Achieve a 0.1-1.0 mm gap between the two halves when held against the cable/pipe;
• Lubricate all modules thoroughly. both the inside andthe outside sealing surfaces;
• Insert the modules according toPoe e noe es coeto the wedge as possible tosimplfy future installations.Insert the modules according toPoe e noe es coeto the wedge as possible tosimplfy future installations;
• Insert a stayplate on top of every finished row of modules;
• Ensure that the modules are secured within the stayplates edges;
• Lubricate the short sides of the wedge before inserting it into the frame;
• Tighten the screws alternately until full mechanical stop,approx 20 full revolutions per screw. Do not exceed 20 Nm(15ft.lb);
• 25 mm of the screws shall be exposed;
• Attach the Wedge Clip to the wedge screws to complete the installation.
