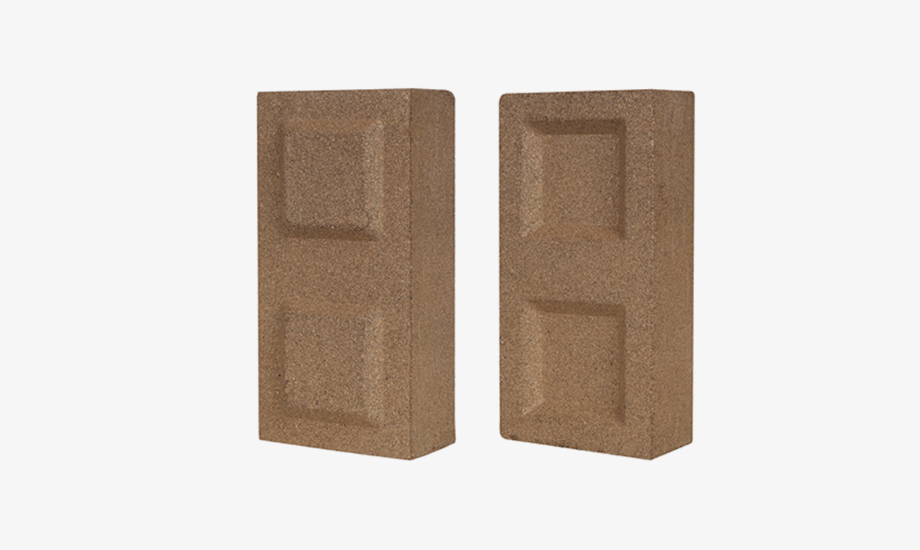

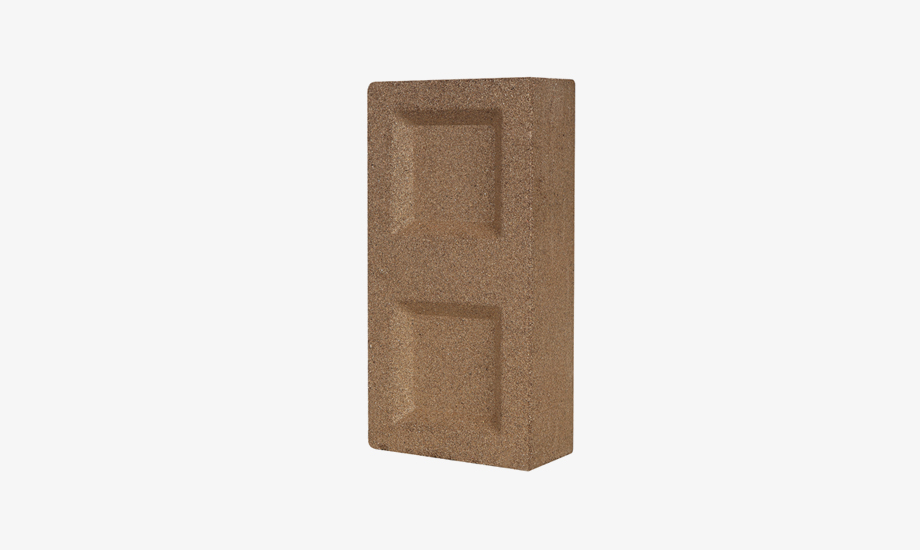

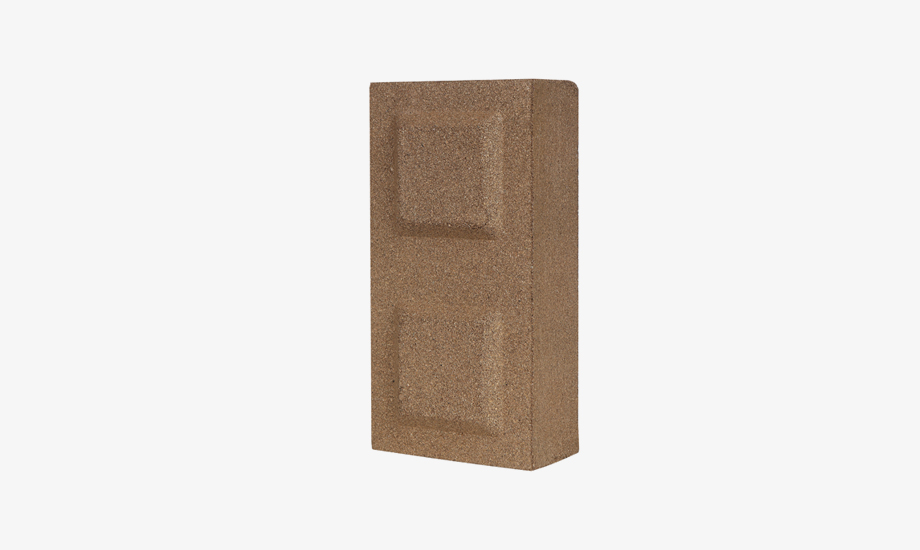

FS-Z Fireproof Module

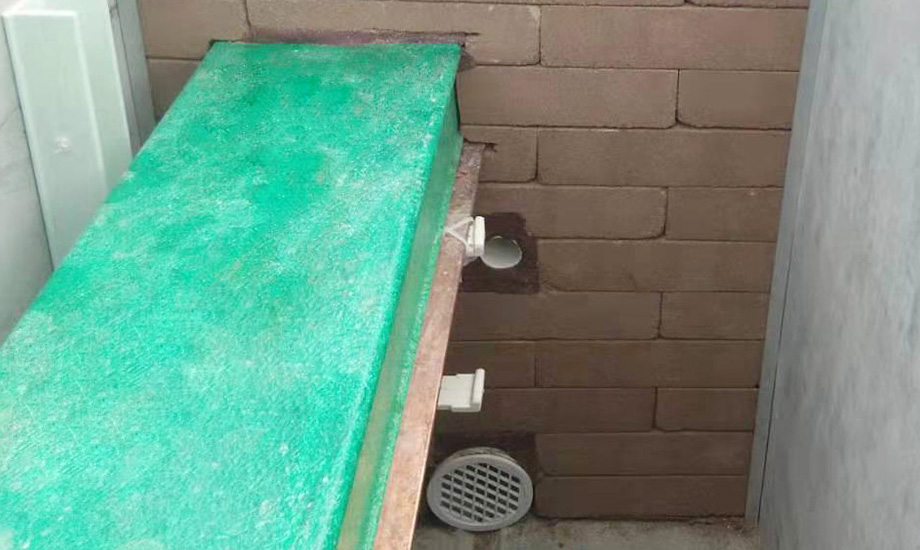

FS-Z Fireproof Module is made of inorganic polymer materials. It is widely used in the fireproof sealing of electric power, communicational wire, cable, electric control cabinet chasis, holes penetrated through the wall, cable horizontal wells, vertical wells and the cable trench firewall etc. When stacking this modules, it will utilize its own special structure to lock themselves together and is not easy to collapse, and it also have the characteristics of light weight.
Product advantages:
• Smoke non-toxic;
• No halogen, sulfur and other toxic ingredients;
• Long-term performance for more than 60 years;
• Environmental protection;
• High inflation in the fire;
• High compression strength;
• Good thermal insulation ability;
• Moisture proof ;
• Corrosion resistance;
• Firm stacking ;
• Good damping performance.

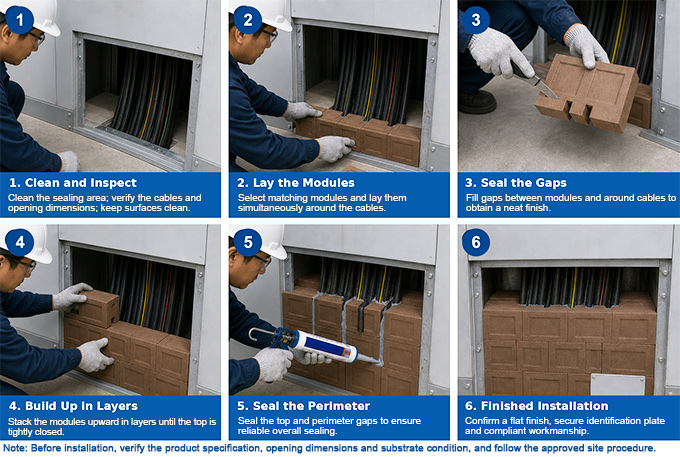

Installation Instructions:
• Clean the opening.
• Trim the firestop module with a knife to fit the penetration size, then stack to seal the opening. Interlock the modules' concave-convex parts alternately; the self-locking structure ensures stable stacking against collapse.
• Seal the cable gaps and the gaps between the firestop modules and the cables with FS-I firestop sealant—ensure the sealant fully fills the gaps without bubbles or gaps.
• If necessary, install an identification label in a prominent position next to the fireproof sealing area for identification during later maintenance.
