FB-2 New Fireproof Plate (Fireproof Sealing Plank)

FB-2 Fireproof Coating Board is a kind of double-sided metal plate that the middle layer is an organi c/inorganic intumescent fire resistant layer with the silicone as a binder. By optimizing the formulation,combined with ceramization technology and fire safety technology, which makes product not only has excellent fire resistance performance, but also ensure that the system will be in a good stability after sealing when gets on fire, it also has features like: beautiful construction process, water impact resistance, high expansion, etc.

Product advantages:

• Convenient for construction;

• Suitable for large and medium-sized hole sealing;

• More than 2 hours fire resistance period;

• Thermal expansion performance, smoke airtight;Stable system structure after expansion, water impact resistance;

• Good appearance after construction, Remove the protective shield to avoid pollution;

• Easy expansion;good bearing performance.

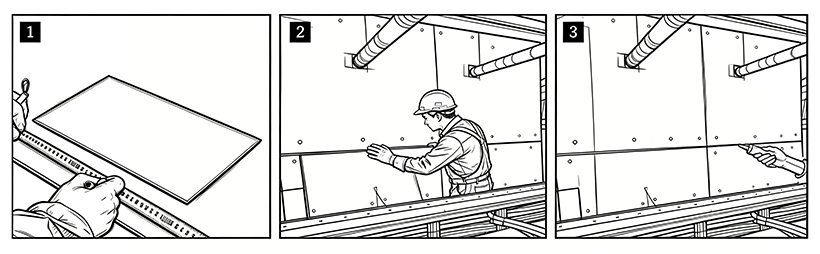

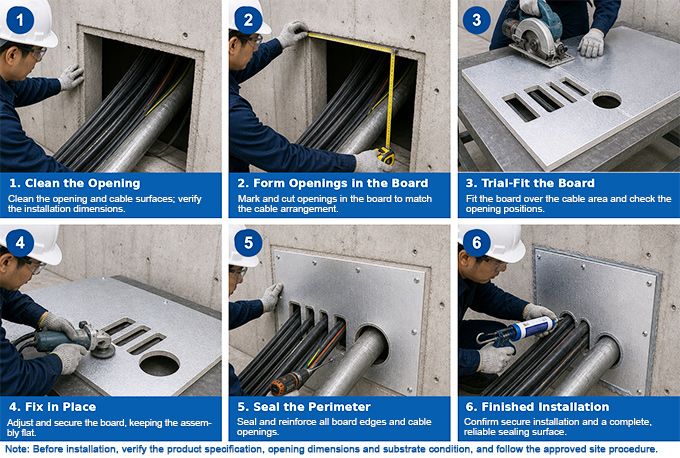

Installation Instructions:

• Keep the hole clean ;

• Measure the hole size;

• Cut the fireproof plate into two halves, and cut according to the shape of penetration object;

• Grind the sharp edges;

• Fix the fireproof plate firmly;

• Use FS-I( Intumescent fireproof sealan)to fill the cable cracks and the cracks around the fireproof plate.
